technique data for this 5 stage ro system
| Product name | 5-stage reverse osmosis drinking water filter system with cover |
| Capacity | 75GPD |
| Flush Type | Auto flush |
| Power Supply | 220V/110V 50Hz/60Hz |
| RO Membrane | VONTRON |
| Housing | 10" double 'O' ring housing |
| Pump | Diaphragm booster pump with adapter |
| Fitting Type | JACO / quick fitting |
| Adapter Plug Type | 1.2 A two plug |
| Faucet | Steel handle |
| Pressure Tank | 3.2G plastic tank |
| Ambient Humidity | 90% |
| Pump Power | 24W |
| Applicable Water Quality | Municipal tap water |
| Unit Packing | 44.5*26.5*81CM |
Parts list.
1st stage: 5 Micron PP cotton filter;
2nd stage filter cartridge:granular activity carbon;
3rd stage:CTO
4th stage : Vontron brand Reverse Osmosis Membrane
5th stage filter cartridge:In-Line Coconut Shell Post Carbon Filter
| Parts name | 5 Micron PP cotton filter | Parts name | CTO cartridge |
| O.D. | 2.5/4.5'' | | Fits standard 2.5 x 10 inch housings |
| I.D. | 28,30mm | | |
| Material | 100% Fresh Polypropylene | | FDA listed material |
| Features. | By spedial production technology to control the diameter of PP fiber , the micron rate of filter cartridge is controlied.Removing efficience can reach 98%. | Features. | High rejection rate of: Chlorine, Volatile Organic Chemicals, Halide, and Chemicals causing bad tastes and odors |
| | Filtration of sediment, rust and other turbid substances in water | Collapse pressure | 14 kg/cm2 |
| | The three layer filtration integrates the surface, deep layer, coarse and fine filtrati | | |
| Parts name | Vontron brand Reverse Osmosis Membrane | Parts name | In-Line Coconut Shell Post Carbon Filter |
| Filtration accuracy | 0.00001 micron | Max. flow | 0.75GPM |
| features | Separation of water and other impurities such as heavy metal, colloids, Viruses, microorganisms and organic | Operating Temp. | 4-52°C |
| life time | 12 months | Max operating pressure | 125psi |
| Desalination rate | >98% | Filter Media | PP Coconut Shell Activated Carbon Block |
| Material | polypropylene | O.D. | 2"/50MM |
| Length | 10inch | | |
| Parts name | activited carbon filter cartridge |
| Certificate | ISO9001; SGS;NSF42 |
| Max. operation pressure | 80PSI |
| Features | enviornment friendly POF shrinkable wrap |
| | food grade TPR washer |
| | BPA free food grade plastic shell |
| | special PP pad to remove big impurities |
Accessories included:

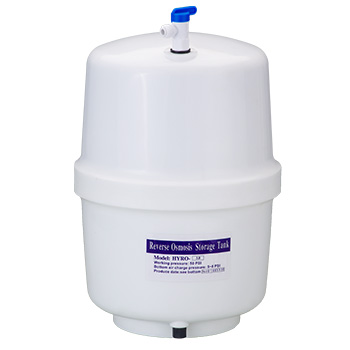

1)plastic pressure water tank 3.2G
2)faucet
3)plastic filter housing wrench, Ro membrane shell wrench;
4)fittings and valves
5)pipes
6)screw set
with TDS value display
Product package:
OEM color box packing is available.
Factory View:
1)warehouse corner
2)Plastic injection workshop
3)Assembly line
4) Ro system testing line
5)Purease attending professional exhibition of water purification
F.A.Q.
Q1: Can I order some pieces of sample to test?
A: Yes,Sample order is welcome for testing and quality confirm,Mixed samples are acceptable.
Q2: what is your MOQ per order?
A: 1pcs for sample testing. for repeated order, we are flexible on ordering qty. we can talk 100pcs etc.
Q3:Is it OK to print my logo on product?
A: yes ,OEM brand is available.
Q4:Do you offer guarantee for the products?
A:Yes, we offer 2-5 years warranty to our products.
Q5:What is your lead time for a mass order?
A:Our delivery date is 25-30days after order confirmation.
Q6:Can you provide high resolution images for my marketing?
A:Yes, we can make high resolution images or videos supporting your propaganda and marketing.
Q7: Can you help designing ?
A:Yes, we can provide assistance regarding to the designing of stickers, color box etc. for the products you purchased from us.
|
|
5-Stage Ultra Safe Reverse Osmosis Drinking Water Filter System with cover Images
|
